  • PANSIM- 9UWallMount Network/DVR Rack
  • PANSIM- 9UWallMount Network/DVR Rack
  • PANSIM- 9UWallMount Network/DVR Rack

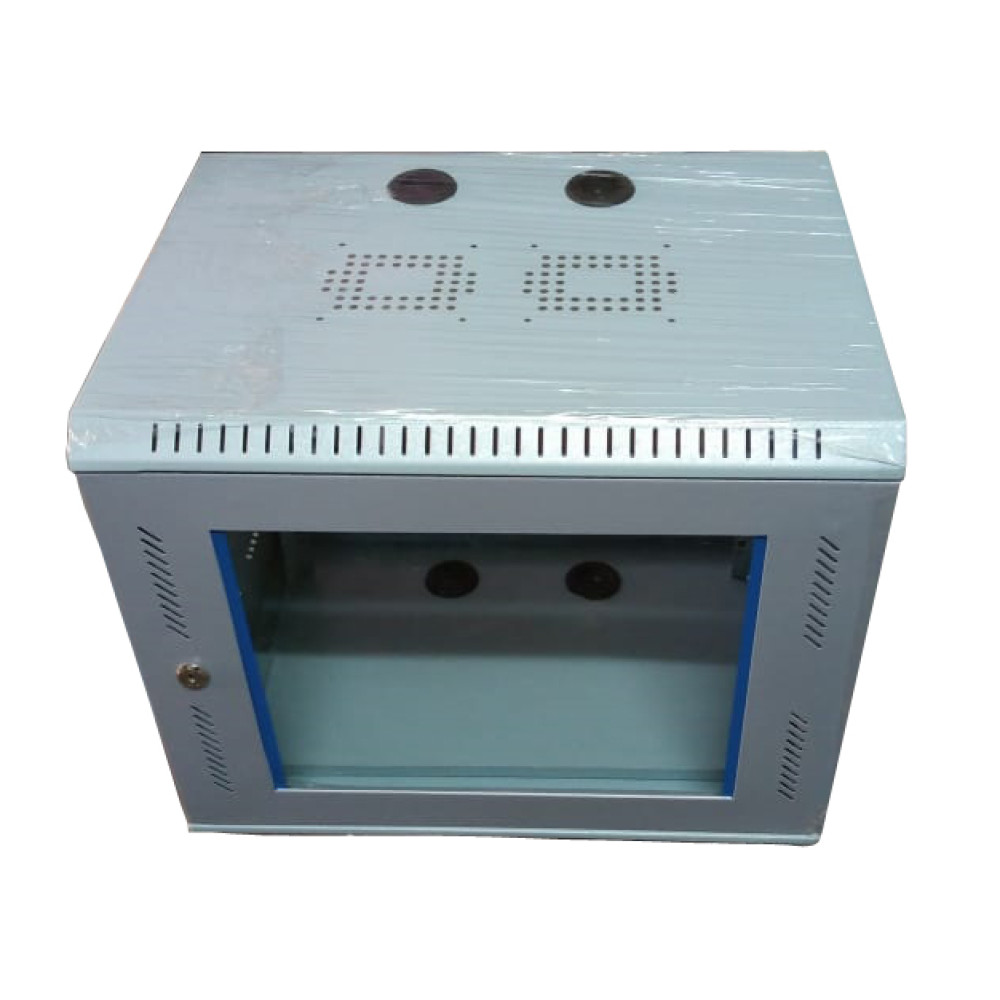

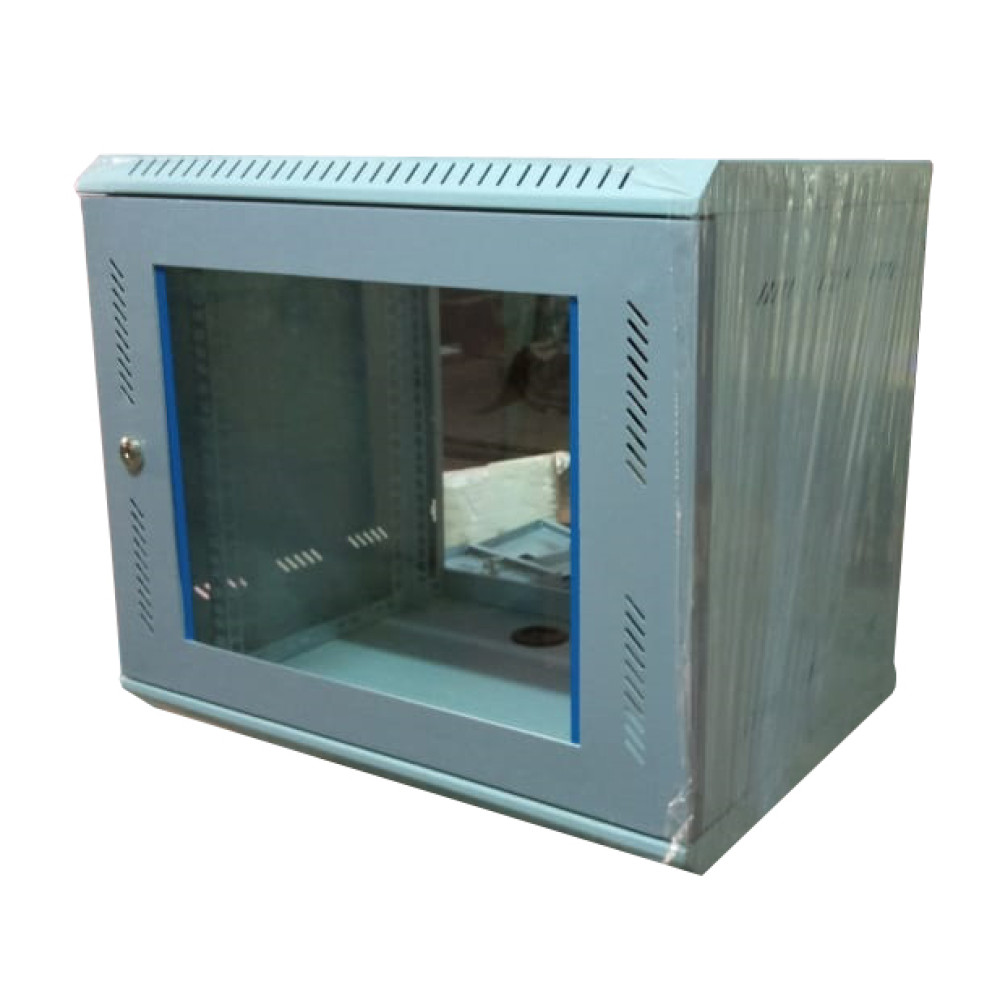

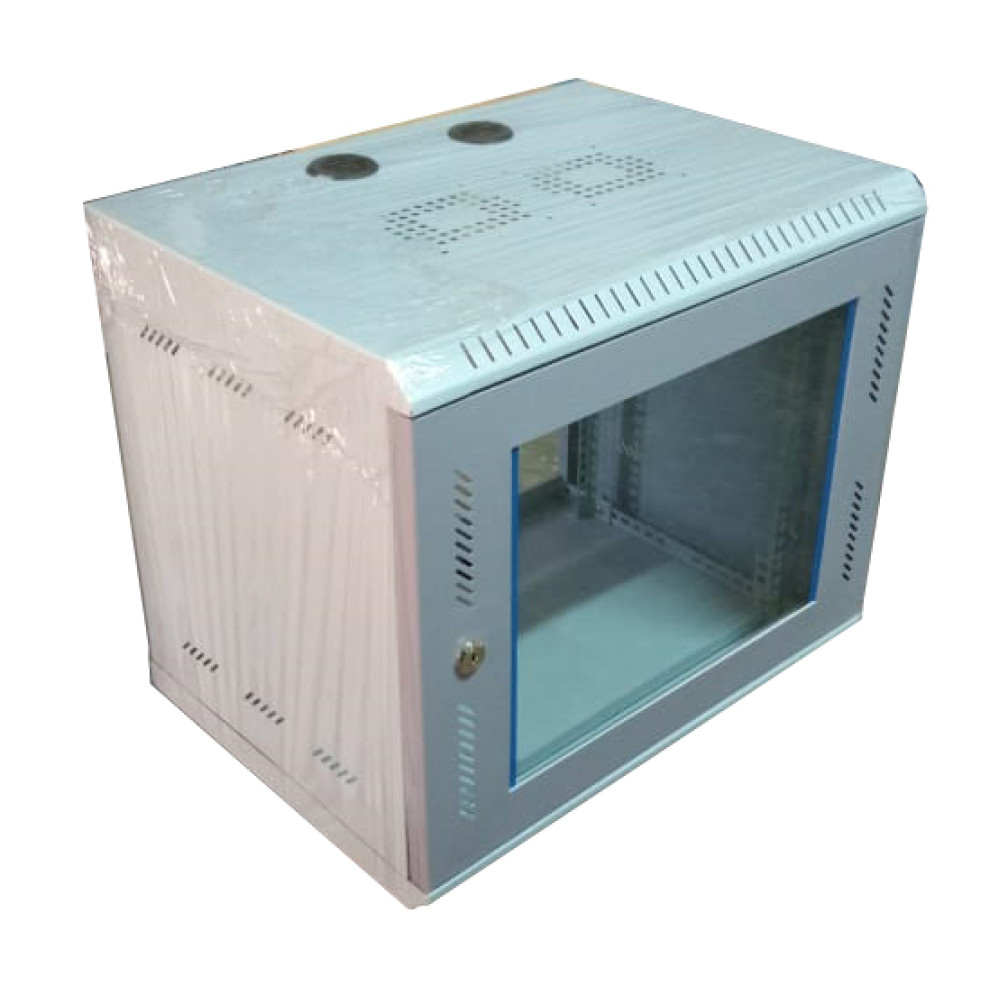

PANSIM- 9UWallMount Network/DVR Rack

Model No. – PANSIM9U550X6000R0F

Brand- PANSIM

·       Usability- Network Switches/Routers/Firewall/ DVR/NVR/Audio- Visual Equipment/Low Depth Servers

·       Front Door- Glass /Metal Door With Key Lock

·       Rear door- Not Available due to Wall Mount Provision Rear door available for Floor Stand Rack

·       Side Panels- Fixed Welded/bolted with Top/Base Frame

·       Cable Entry Cut- Top/ Bottom

·       2 Pair Heavy Duty Vertical Mounting Rail Optional

·       Cooling Option- 1-2 fan Provision mounted on Top Panel

·       Load Bearing Capacity up to 25 -40 KG

·       Power Distribution Unit- 6 Socket 5 & 15 AMP Horizontal Optional

·       Cable Management- Horizontal Metal  & PVC Optional

·       Fix Shelf/Cantilever Shelf- 255mm  to 455mm Optional

·       Color- light Grey Powder Coated ( RAL 7035) and RAL 7032 ( as per Requirement)







Product Part No.



Height in U



Overall Height



Usable Height



Overall Width



Usable Width



Overall Depth



Usable Depth



 (9U 550x600)



9U



477 mm



412 mm



550 mm



482.6mm

(19 Inch)



600mm



540mm
