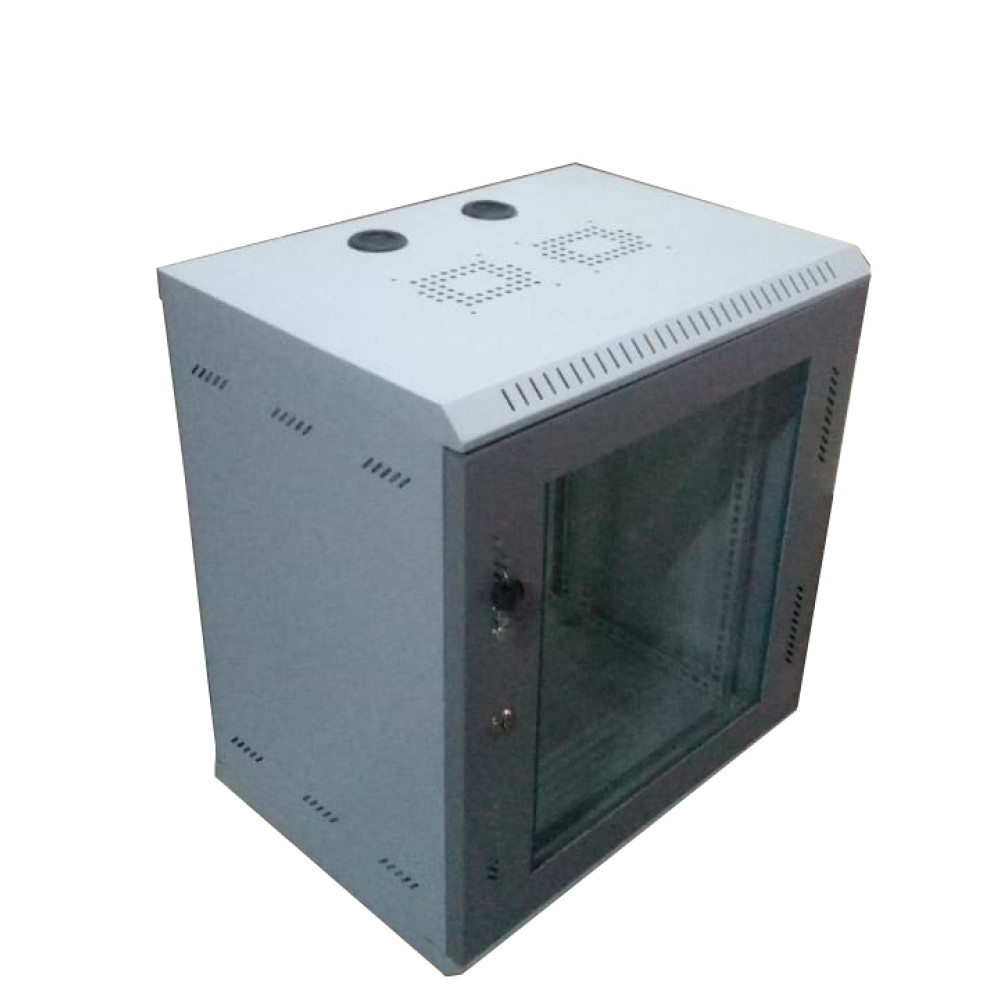

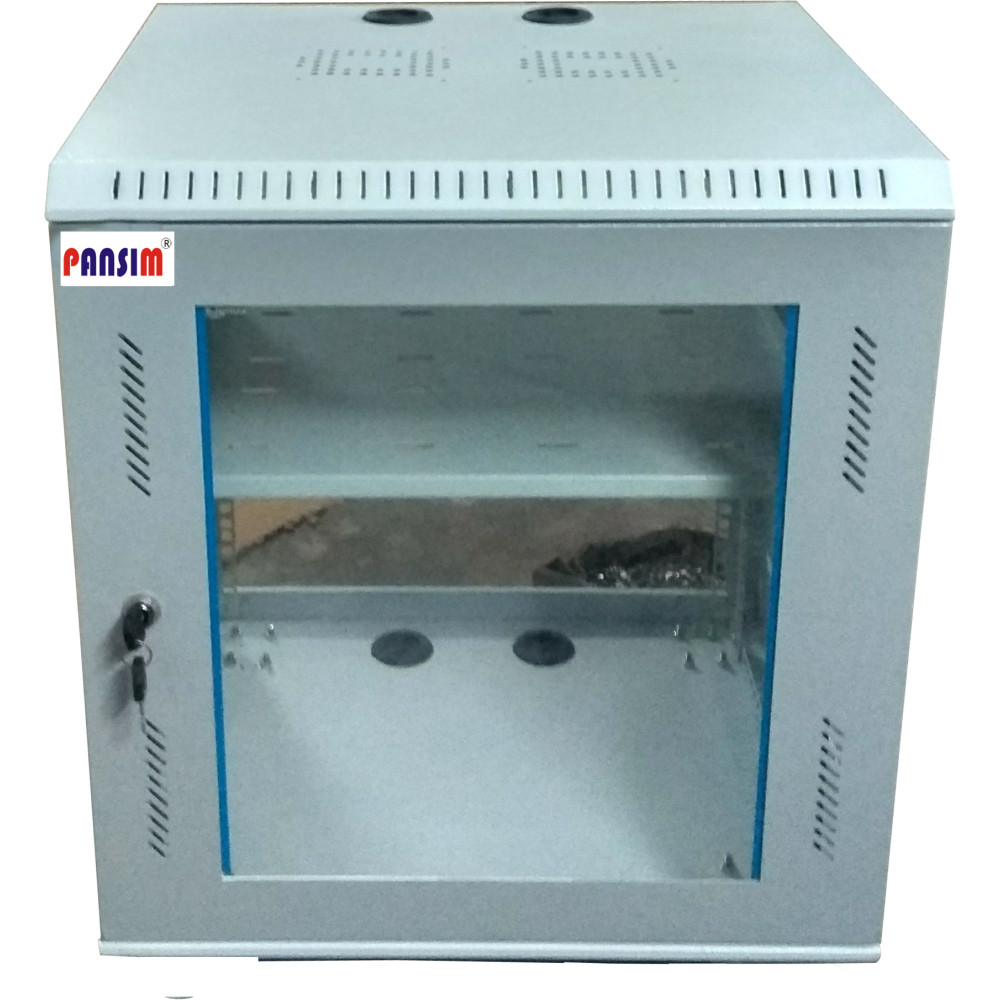

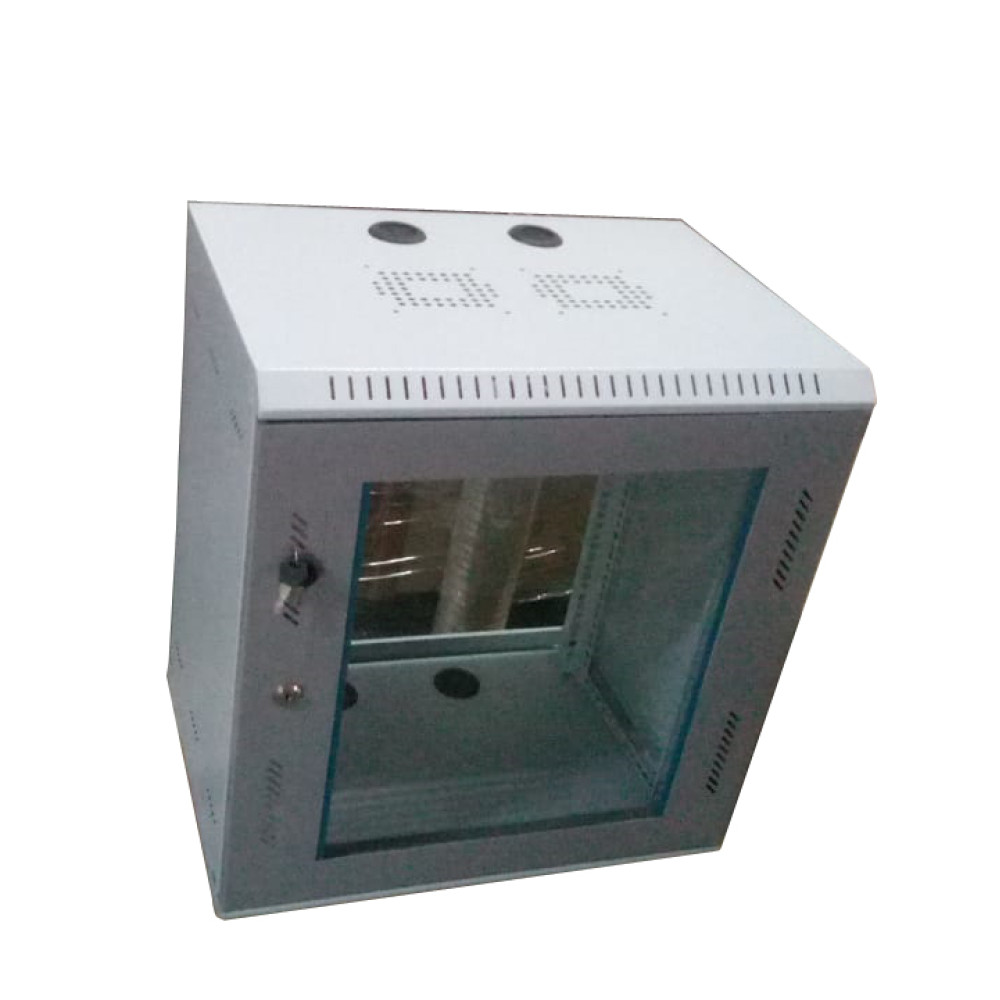

Brand- PANSIM (MODEL - PANSIM12U550X6000R0F)

· Usability- Network Switches/Routers/Firewall/ DVR/NVR/Audio- Visual Equipment/Low Depth Servers

· Front Door- Glass Door With Key Lock

· Rear door- Not Available due to Wall Mount Provision Rear door available For Floor Stand Rack

· Side Panels- Fixed Welded/bolted with Top/Base Frame

· Cable Entry Cut- Top/ Bottom

· 2 Pair Heavy Duty Vertical or Horizontal Mounting Rail

· Cooling Option- 1 or 2 fan Provision mounted on Top Panel

· Load Bearing Capacity up to 25 -50 KG

· Power Distribution Unit- 6 Indian Socket 5  AMP (Optional)

· Cable Management- Horizontal Metal & PVC optional

· Fix Shelf/Cantilever Shelf- 255mm to 375 mm optional

· Color- light Grey Powder Coated ( RAL 7035) and RAL 9005 Black ( as per Requirement)

Height in U

Overall Height with Castor/Leg

Usable

Height

Overall Width

Useable Width

Overall Depth

Usable Depth

12U

600mm

( 23.62 Inch)

533 mm

(20.98 Inch)

575mm

482.6mm

(19 Inch)

600mm

520mm (20.00 inch)
